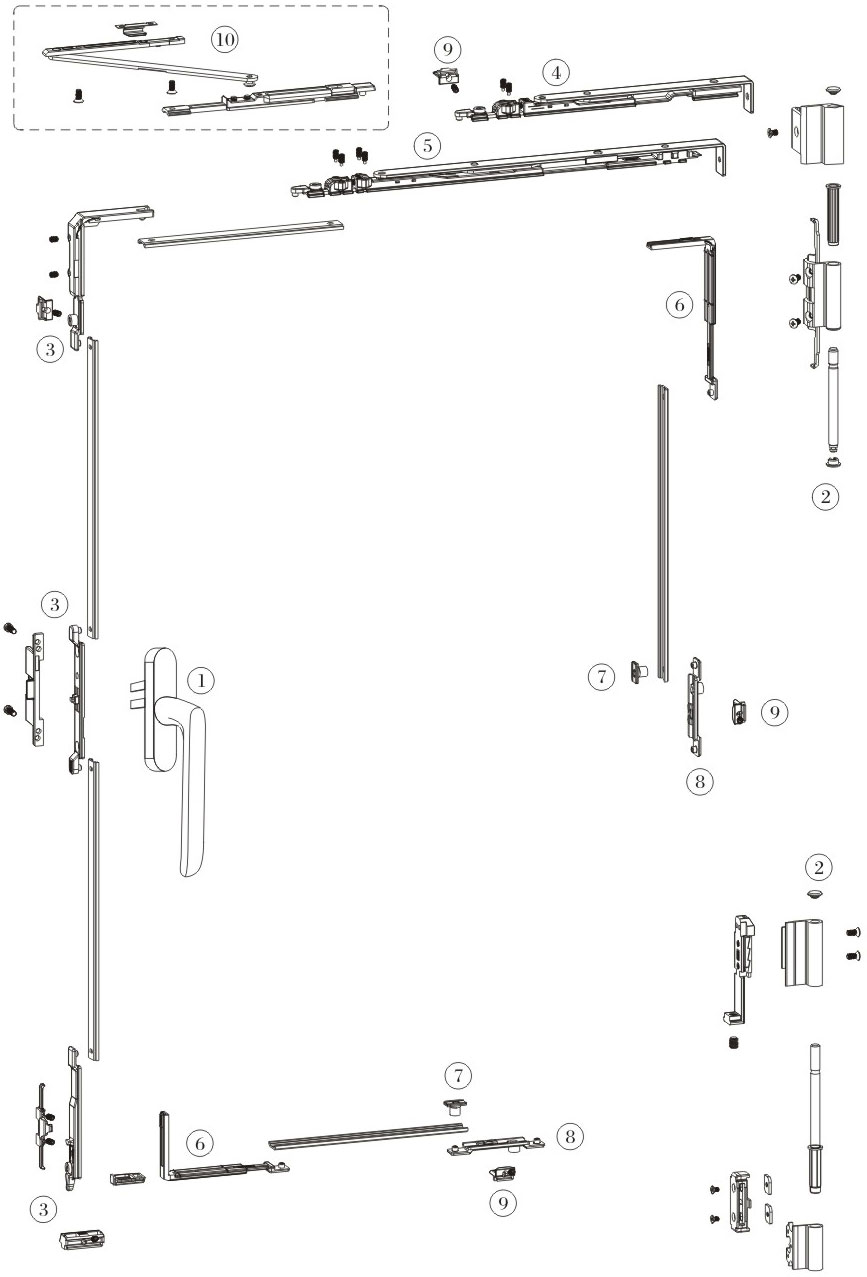

Inward opening and inverting hardware system
Introduction
Matters Needing Attention:
1.Scope of application: SRH(height of fan slot)=480-2450mm, SRW(width of fan slot)=350-1600mm
2.Hinge bearing: maximum 130Kg, adjustable in three dimensions, upper and lower ± 3mm, left and right ± 3mm, internal and external ± 1mm
3.According to the different profiles matching hardware, this configuration is for reference only.
